8 product images; physical sample on request.产品图共 8 张，可提供实物样品。

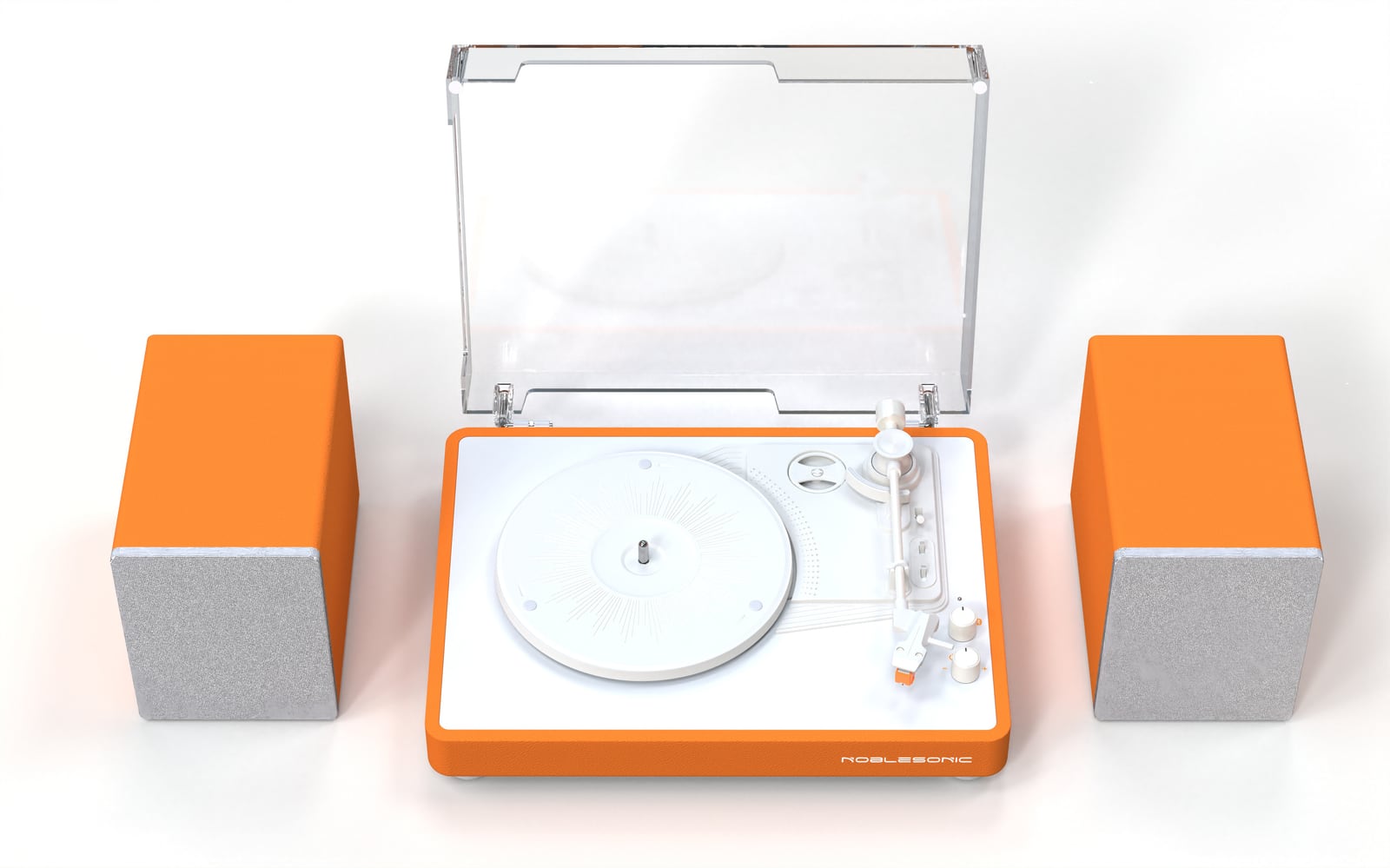

N512
One platform, eight finishes already on file.一套平台，八种配色已在产。
The split system we already produce in eight colourways — cream, walnut, orange, black and combinations. Useful when your brand needs a colour story from day one rather than one hero SKU.同一套分体平台已有八种配色：米白、胡桃木、橙色、黑色及多种混搭。适合第一天就需要完整配色体系、而不是单个主推款的品牌。
- Eight colourways already tooled.八种配色均已在产。
- NS01 cartridge, 200 h stylus.NS01 唱头，200 小时唱针。
- 115 mm deck with 182.6 mm speakers.115mm 主机 + 182.6mm 音箱。
- 840 pcs per 40′ HQ.40 尺柜装 840 台。
Full specification完整规格
| Power adapter电源适配器 | AC 100–240 V → DC 12 V / 2000 mA |
|---|---|
| Rated power额定功率 | 24 W |
| Mains frequency电源频率 | 50–60 Hz |
| Speaker configuration扬声器配置 | 4 Ω 10 W × 2, in separate cabinets4Ω 10W × 2，独立音箱 |
| Cartridge唱头 | Moving magnet, NS01动磁唱头 NS01 |
| Tracking force针压范围 | 2.5–3 g |
| Stylus life唱针寿命 | 200 h |
| Functions功能 |
|
| Body materials机身材质 | MDF · ABS · PS · metalMDF · ABS · PS · 五金件 |
| Dimensions (W×D×H)产品尺寸（宽×深×高） | 372 × 288 × 115 mm |
| Speaker dimensions音箱尺寸 | 152 × 130 × 182.6 mm |
| Loading, 40′ HQ40 尺高柜装柜量 | 840 pcs |
Specifications are taken from our current production sheets and may be adjusted during ODM development.以上规格来自本公司现行生产资料，ODM 开发过程中可能调整。
Other models in the same form factor同形态的其他机型
Split system分体式490 mm wide, with 349 mm speakers.490mm 宽体，配 349mm 独立音箱。
The widest deck in the range at 490 mm, paired with the largest speaker cabinets — 349 × 225 × 153 mm.全线最宽的 490mm 主机，搭配最大尺寸独立音箱 349×225×153mm。适合想要家具级体量、而不是便携造型的品牌。
Split system分体式The most power in the split range.分体线功率最大。
2 × 30 W mid-bass and 2 × 15 W tweeters on a 54 W supply, driving 255 mm cabinets. Already in production in both black and white.2×30W 中低音 + 2×15W 高音，54W 电源，推动 255mm 独立音箱。黑色与白色版均已量产。
Split system分体式Split system with the deck down to 112 mm.分体式：主机压到 112mm。
A 112 mm deck paired with 247 mm tall speaker cabinets.112mm 主机配 247mm 高的独立音箱。
